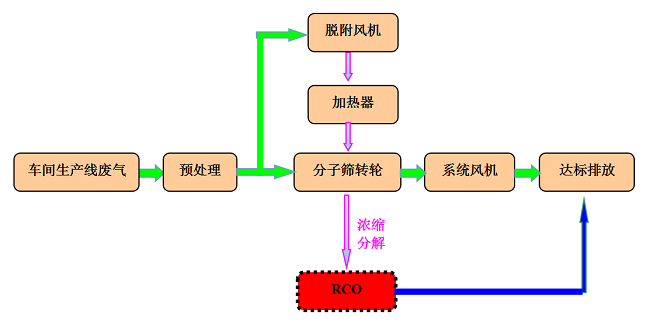

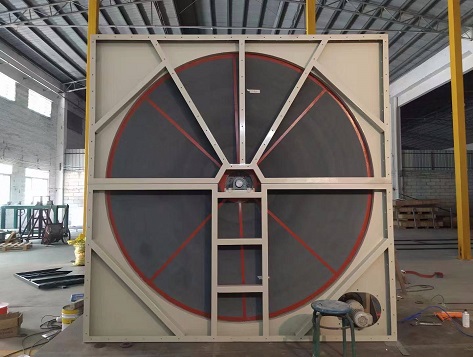

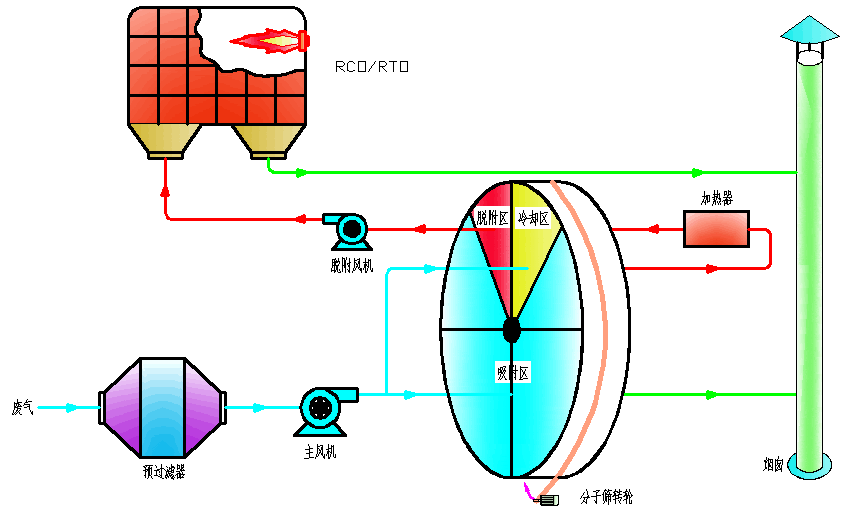

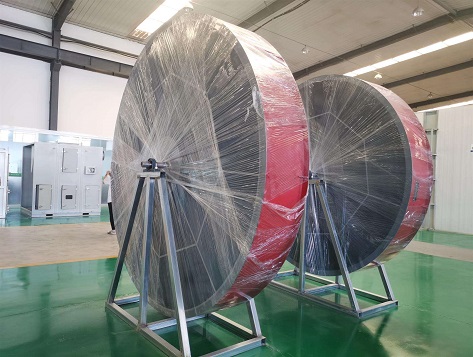

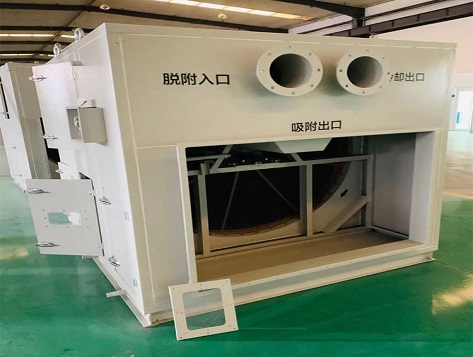

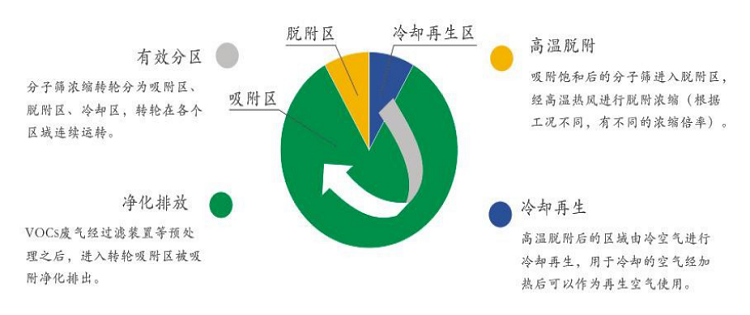

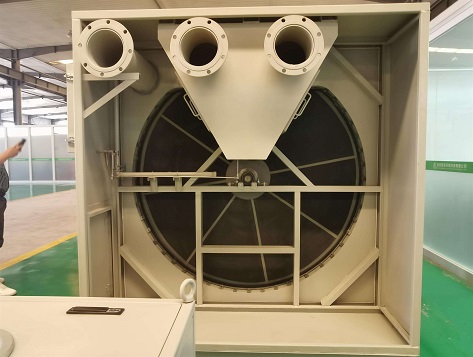

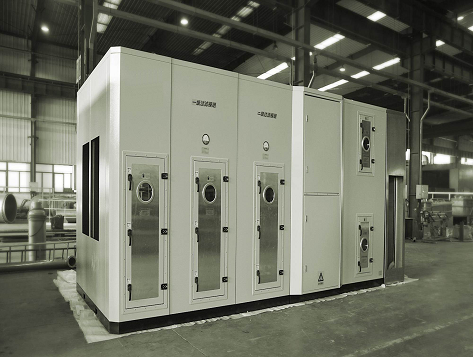

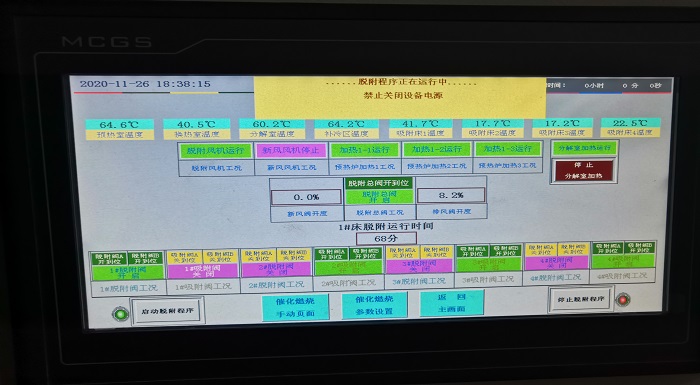

The molecular sieve zeolite runner adsorption concentration + RCO organic waste gas treatment process is adopted. The waste gas from the workshop production line is first pretreated to treat the paint mist and other particles, and then enters the molecular sieve runner adsorption concentration device to treat the organic waste gas. The treated waste gas is discharged through the fan. The molecular sieve runner adsorption and concentration device is divided into adsorption zone, desorption regeneration zone and cooling zone, which can realize continuous and reliable operation. Hot air is introduced into the desorption and regeneration area to blow out the organic solvent adsorbed in the molecular sieve, and then sent to the subsequent RCO unit to decompose it into harmless CO2 and H2O, which are discharged after reaching the standard. When the concentration of organic waste gas reaches a certain concentration or more, the heat generated by decomposition of organic matter can maintain the operation of RCO device without adding additional heat. The heat of the exhaust gas after purification treatment can be used for production or as a heat source in other aspects to save energy and reduce operating costs.

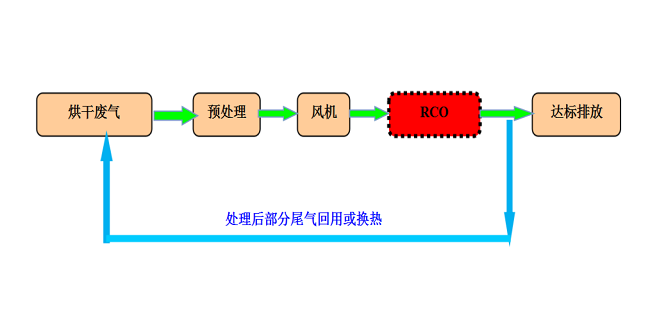

The regenerative catalytic decomposition unit (RCO) organic waste gas treatment process is adopted. The drying waste gas is pretreated first, and the pretreated waste gas enters the subsequent RCO unit to decompose the organic matter in the waste gas into harmless CO2 and H2O, and then it is discharged up to the standard. When the concentration of organic waste gas reaches a certain concentration or more, the heat generated by decomposition of organic matter can maintain the operation of RCO device without adding additional heat. The heat of the exhaust gas after purification treatment can be used for production or as a heat source in other aspects to save energy and reduce operating costs.

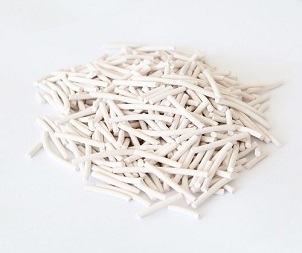

The main material is natural zeolite, which is an inorganic microporous material composed of Si02. A1203 and alkaline metal or alkaline earth metal. It has uniform micropores, its pore size is equivalent to the general molecular size, the internal pore volume accounts for 40-50% of the total volume, and the specific surface area is 300-1000 m2 / g. due to the uniform pore size distribution, obvious changes in structure and composition, it has the characteristics of high temperature resistance, non combustibility, good thermal stability and hydrothermal stability. Bulk density: 550-590kg / M; Penetration adsorption capacity: 20-35kg / m, suitable for treating benzene, toluene, xylene, styrene, hexane, cyclohexane and MEK MIBK, acetone, ethyl acetate, NMP, THF, propionic acid, butanol and various oxygen system solvents

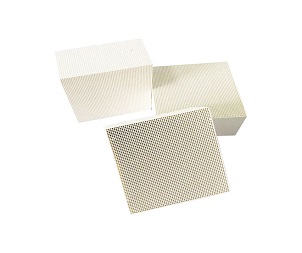

Jiutong adopts dense cordierite heat storage ceramics, multi-layer ceramic plate module design, good anti blocking performance, and no residual thermal stress after heating; The pressure of the air flow through the heat storage ceramic decreases, thereby reducing the operating cost; Uniform airflow distribution, high turbulence and high heat exchange efficiency.

4-72 / 4-73 centrifugal fan, no temperature resistance requirement, belt pulley drive, low energy consumption, high efficiency and strong stability; The fan base adopts channel steel, angle steel and industrial profiles welded into a frame, which is firm and durable; Multi blade impeller, made of 16Mn, with noise no more than 85dB (a); The air volume, air pressure and other parameters of the fan meet the design requirements

Jiutong adopts internationally famous brands, such as Honeywell, North American North America, Tianshi eclipse, etc. the combustion system adopts the international FM certification system to ensure the reliability and quality of the equipment in terms of performance, and has the advantages of accurate temperature control, energy saving, long service life, high safety, clean combustion and environmental protection

The regenerator shell is made of 6mm Q235B reinforced steel plate, and the insulation layer is made of 250mm thick ceramic fiber, including two layers of ceramic fiber felt and one layer of ceramic fiber module. The module is provided with a heat-resistant steel framework, which is fixed on the furnace shell with anchors and can withstand 1260 ℃

Stainless steel bursting discs are installed on the pipes of the catalytic combustion device, and pressure relief valves are installed on the top. When the pressure difference on both sides of the bursting discs reaches the predetermined value under the predetermined pressure, the bursting discs will act immediately to release the pressure medium, which conforms to the relevant provisions of explosion-proof pressure relief design GB 50160

The determination of the size depends on the air flow speed and the concentration of harmful substances discharged. The wind speed in the chimney is designed to be between 12-16m / s. The chimney is made of galvanized spiral air duct
