• Strong flexibility: the equipment is scientific and compact in design, small in floor area, and equipped with universal casters, which can move freely

• High filtration efficiency: the adsorption medium adopts filter cotton + honeycomb activated carbon, and the purified air meets the national emission standards

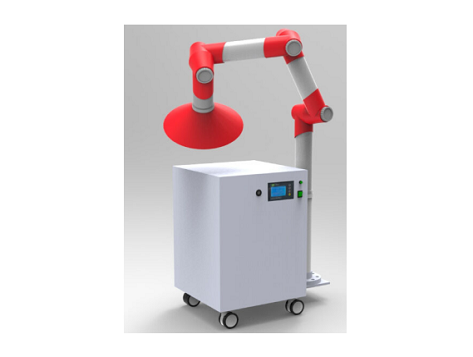

• 360 degree flexible air arm: equipped with one or two, which can rotate 360 ° to easily and flexibly absorb VOC exhaust gas in any direction

• Intelligent LED display: real time online monitoring of chemical concentration and TVOC at the air outlet and displaying ppm value, and automatic alarm

• High efficiency of air suction hood: joint arm fixed mode, no need to manually support the hood, can quickly and large-area absorb harmful exhaust gas

• Low noise: through special shock absorption and noise reduction treatment, such as sound insulation cotton, to ensure environmental protection of equipment noise

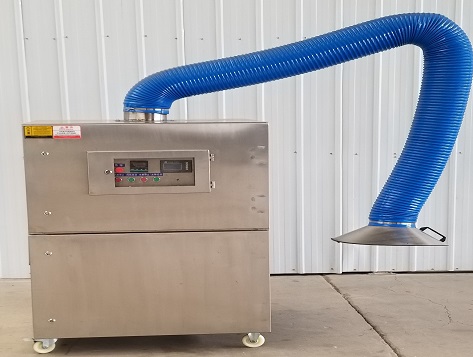

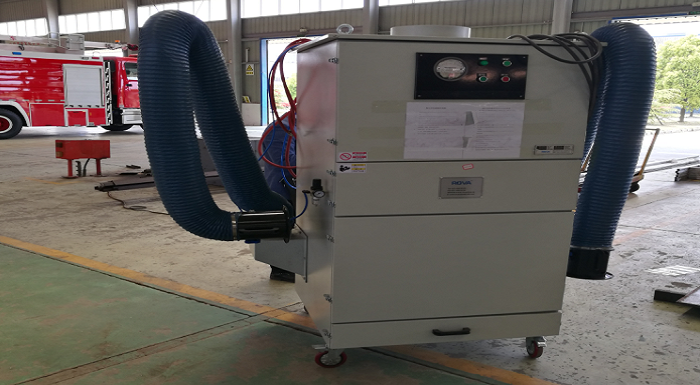

Mobile VOC waste gas treatment equipment is widely used in the purification and treatment of welding dust, grinding dust and paint spray generated in various welding, polishing, cutting, grinding and painting processes involved in automobile, metallurgy, electronics, shipbuilding, heavy industry, machinery, sheet metal, plastics, rubber, steel, medicine, military industry, paper making, chemical industry, railway, glass and other industries.

The smoke or paint mist generated during production and operation is sucked into the mobile VOC waste gas treatment equipment through the suction hood due to the gravitational force of the fan, and the large particles are separated and intercepted by the fire prevention net of the net pre filter. The preliminarily filtered smoke or paint mist passes through the filter element protection plate and further blocks the particles. The filtered smoke or paint mist enters the main filter element. The filter material of the main filter element is a new material produced by Donaldson technology, The filter material is 100% polyester fiber, and the filtration efficiency reaches 99.9%. The purified gas is further purified by the activated carbon layer filter cotton and then discharged through the air outlet.

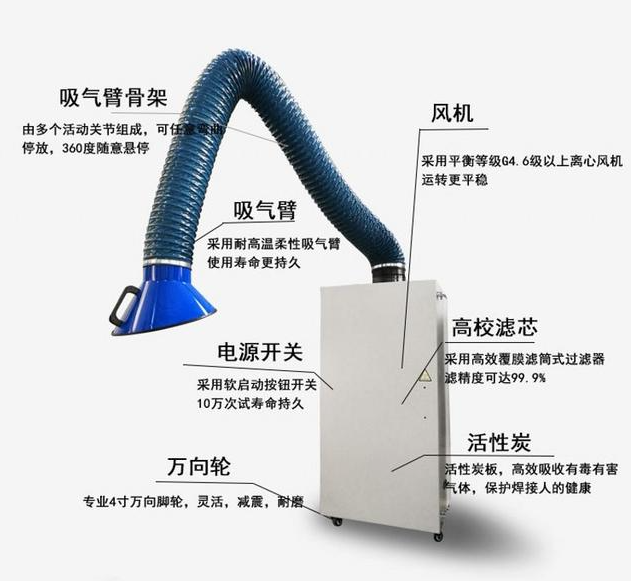

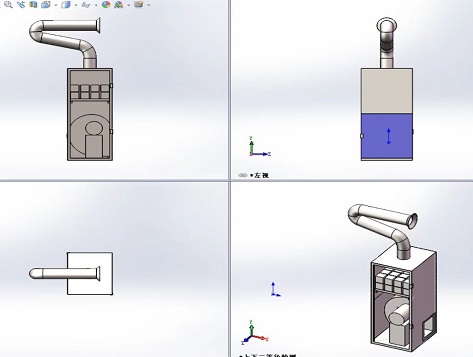

Structure diagram of mobile VOC waste gas treatment equipment

All components can be customized (such as size, material, brand, process, function, etc.)

Box

It is made of 3mm thick high-quality carbon steel plate and 100 * 100 square steel folded and welded. The shell is sprayed with plastic. It covers a small area, is flexible, beautiful, strong and corrosion-resistant, and has a long service life.

Purification treatment system

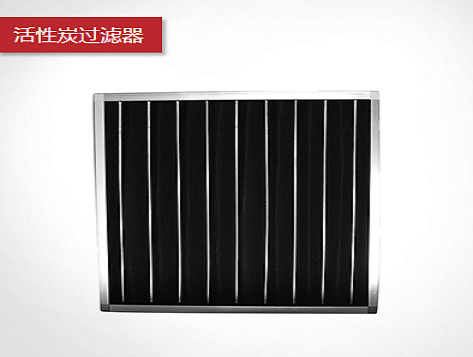

Universal wheel	Flexible suction arm	filter element	Fan	Activated carbon

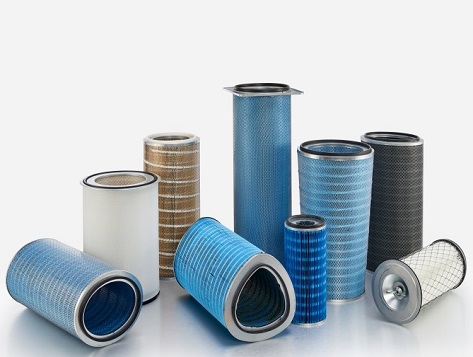

5.5mm steel plate is forged and hot processed by s-45c, with wear resistance and shock absorption; The double track structure and the heat-treated ball plate base plate increase the load and flexibility, and the new material has no return material, which extends the service life of the wheel.	It is composed of suction arm skeleton and PVC hose. The hose is resistant to high temperature (150 °), acid and alkali. The standard length is 2 meters or 3 meters, and can be customized; The skeleton is composed of multiple movable joints, which can rotate 360 degrees arbitrarily and has strong flexibility; The internal structure and the connection of the hood are made of stainless steel, which is free of rust, corrosion, acid and alkali	The filter cartridge is made into a folded cylindrical shape in structure, supported by metal frames inside and outside, and fixed by top cover and base at the top and bottom. The top cover is provided with fixing bolts and washers; A standard filter cartridge has a filtration area of 23m2 and a large filtration area; The filter material is a new material produced by Donaldson technology. The filter material is 100% polyester fiber with a thickness of 0.80mm; Heat resistant maximum temperature: 80 ℃; Air permeability: 220m ³/ m2/h； Weight: 260g / m2; Filtration precision: 5um-10um; Filtration resistance: ≤ 46pa; Filtration efficiency: ≥ 99.99%	The balance grade G6 centrifugal fan is adopted to ensure that the control wind speed of VOC unorganized emission position farthest from the exhaust hood opening surface of the exhaust gas collection system is not less than 0.3m/s, low noise and quiet, stable air volume, energy saving and environmental protection, and high-speed efficiency; Equipped with high temperature resistant all copper motor, light weight, fast heat dissipation, small vibration and long service life; Integral carbon steel plate impeller, resistant to corrosion, high temperature and deformation.	Aluminum frame, strong and light, easy to install and disassemble; Honeycomb activated carbon is adopted, which has the characteristics of large area, small through-hole resistance, developed micropores, high adsorption capacity and long service life. It can absorb most organic gases, such as benzene, aldehyde and ketone, alcohol, hydrocarbon and malodorous substances

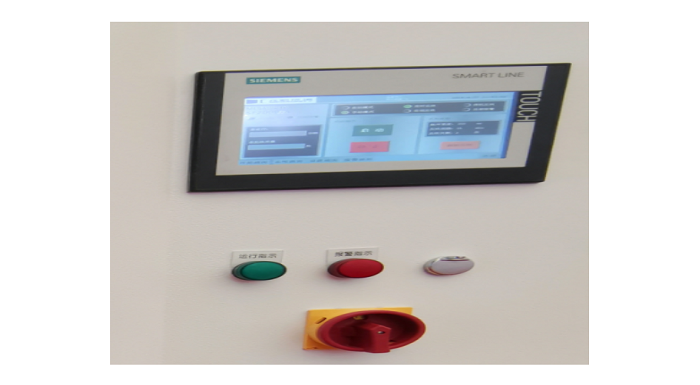

electric control The control system of mobile VOC waste gas treatment equipment is safe and stable, equipped with anti electromagnetic interference power line and high-voltage leakage protection; The LED display control panel can display indoor temperature, PPM value of air quality, PPM value of concentration change of weathering chemicals at the outlet of the filter, fan speed, etc. the user can set appropriate alarm points to improve the safety level; Anti electromagnetic interference power line

Note:

the equipment dimensions are for reference and can be designed and manufactured according to the customer's product dimensions.

If you want to customize it, you can click this text
